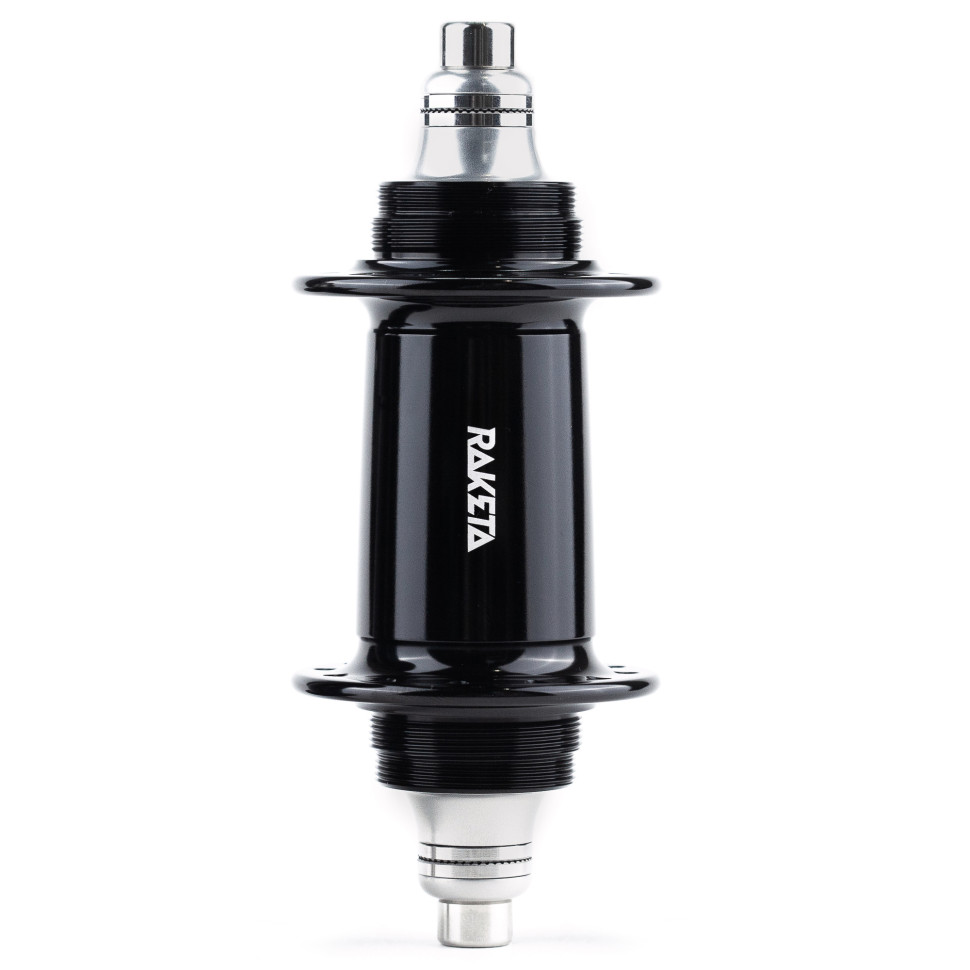

Raketa Track Rear Hub
Rear hub for track and fixed gear bicycles
Since track racing is not the most popular branch of cycling, most of the manufacturers don’t really pay attention to it. And, unfortunately, as a result, most of the products on the market are outdated. The design of these products goes back to the 80s. We have to admit that these technologies have proved themselves to be very reliable, but as time goes by, new requirements for modern bikes are born. That’s why modern track hubs have to utilize all the progress that technologies have achieved to become lighter, more durable, have easier maintenance, and their appearance must be a good match to the modern carbon and aluminum racing machines.
We have taken into account all these aspects while we were designing these hubs. So, we present to you — The second generation of Raketa Track Hubs.
| Specifications | |
| Hub shell material | Aluminum 7075-T6 |
| Axle material | Aluminum 7075-T6 |
| Bolt material | Titanium Gr.5 |
| Weight | 209 g |
| Cog thread | 1.37" x 24 TPI |
| Lockring thread | 1.29" x 24 TPI (LH) |
| Dimensions | |
| Axle length | 120 mm |
| Left side flange center to hub center | 33 mm |
| Right side flange center to hub center | 33 mm |
| Left side flange diameter | 49 mm |
| Right side flange diameter | 49 mm |
| Spoke hole diameter | 2.5 mm |
| Options | |
| Bearings | 2x 61902 |
| Spoke holes | 16, 18, 20, 24, 28, 32 |
